Features & Benefits:

  • For high bulk density materials; a proprietary, dual-induction endplate design introduces pressurized air from both endplates into rotor pockets to provide highly efficient, air-assisted material introduction.
  • Available in 4 heights, from 17 1/2"H to 21 1/8"H; and 4 flange sizes from 6 5/8" x 6 3/4" to 25 1/4" x 12".
  • Valve housing cast in North America; ensures superior strength and solidification of housing's metallurgy.
  • CNC-machined components and housing provide precision tolerances; eliminates axial shaft movement, extends maintenance cycles.
  • Air-sealed shaft extends bearing life; reduces maintenance.
  • Valve housing vent ports.
  • Easily manages pressure differentials up to 20 PSIG.
  • Excellent performance in high-temperature applications up to 500°F.
  • Cast iron housing.
  • 10-vane rotor with beveled tips and sides.

Options:

  • 304 or 316 cast stainless steel valve housing.
  • Interior coatings: hard chrome, tungsten, nickel, and epoxy.
  • Rotor types: adjustable-tip, and Teflon®-coated.
  • Adjustable rotor tip types: hardened steel, stainless steel, and bronze.
  • High-temperature performance, up to 500°F.
  • Custom drive packages.
  • Motion speed switch assembly.

Customizations: Aero-Flow™ Series

Rotors

Adjustable Rotor Adjustable Rotor Open End Rotor Open End Rotor

Specifications

Inlet/Outlet Flange Sizes: 4 sizes from 6 5/8" x 6 3/4" x 25 1/4" x 12"
Material of Construction: Cast Iron, Stainless Steel
Pressure Differential: Up to 20 PSIG
High Temperature Range: 750°F
Industries
Systems
Types

Videos

Yes, you have to remove our endplates to replace the shaft seal
Yes, you have to remove our endplates to replace the shaft seal

We're facing our critics head on.
Understanding Airlocks: The key to increasing ROI
Understanding Airlocks: The key to increasing ROI

Learn the fundamentals of airlock performance, how to minimize air leakage and how improve efficiency.

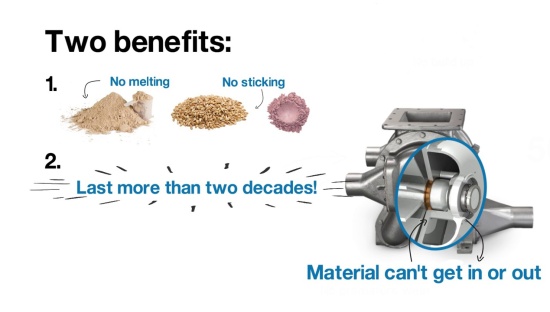

How to convey sticky material with a blow-through
How to convey sticky material with a blow-through

When conveying sticky material, you can get the benefits of a blow-through without the premature wear.
Aero-Flow Series Valve, front view
Explore in our 3D gallery.
CI valves with ruler lines.
