Rotary Airlock
An ACS Valves rotary airlock will immediately bring tangible operating advantages to a dry bulk material handling or dust collection application. The precision casting, CNC machining, and tight final assembly tolerances of ACS rotary airlock valves ensure minimal air leakage and low effective pressure drop between areas with different air pressures. Whether a rotary airlock valve application, or as a metered valve, ACS products will improve your bulk material conveying efficiency.
Recommended
Aero-Flow™ Series
Inlet/Outlet Flange Sizes: 4 sizes from 6 5/8" x 6 3/4" x 25 1/4" x 12"
Material of Construction: Cast Iron, Stainless Steel
Pressure Differential: Up to 20 PSIG
High Temperature Range: 750°F
Recommended

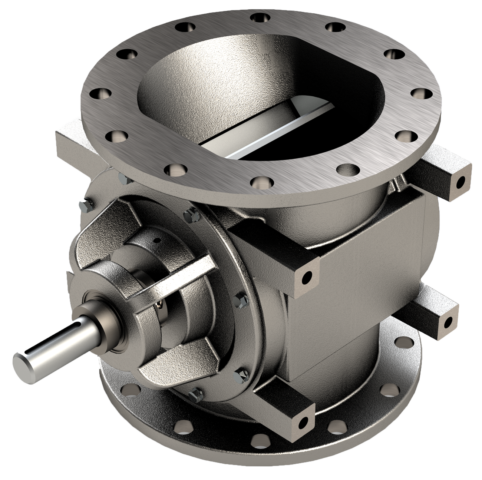

MD Series
Inlet/Outlet Flange Sizes: 7 sizes from 4" to 16"
Material of Construction: Cast Iron, Stainless Steel
Pressure Differential: Up to 22 PSIG
High Temperature Range: 750°F
Recommended

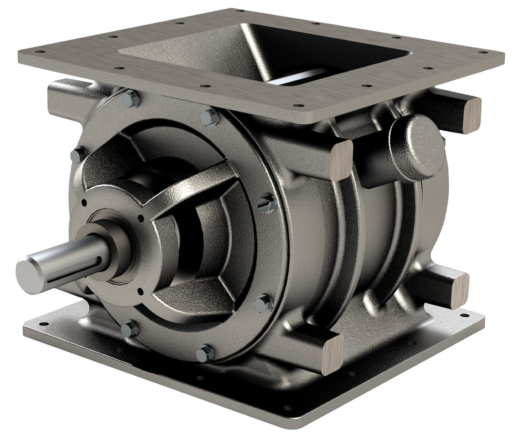

CI Series
Inlet/Outlet Flange Sizes: 10 sizes from 6" to 26"
Material of Construction: Cast Iron, Stainless Steel
Pressure Differential: Up to 20 PSIG
High Temperature Range: 750°F
Recommended
BT Series
Inlet/Outlet Flange Sizes: 2 sizes, 8" and 10"
Material of Construction: Cast Iron, Stainless Steel
Pressure Differential: Up to 20 PSIG
High Temperature Range: 500°F
12" Multi-Port Series
See the valve
